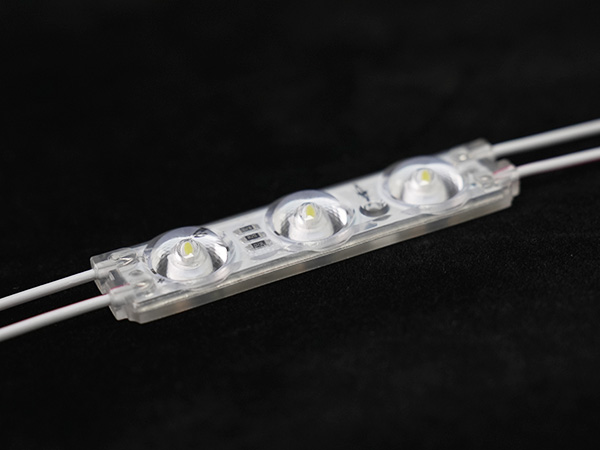

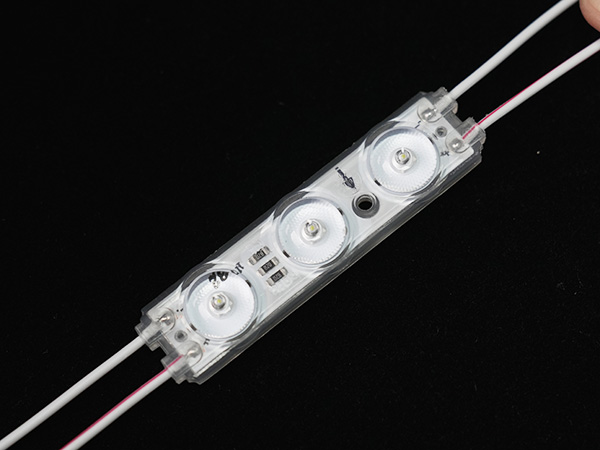

LED light modules for signs are purpose-built components designed to illuminate signage with efficiency and visual impact. These modules utilize advanced LED technology, delivering bright and uniform lighting for enhanced visibility. Their modular design allows flexible integration into various sign structures, offering versatility in design and installation. With energy efficiency and long lifespan, LED light modules for signs provide a cost-effective and sustainable solution for creating eye-catching displays in commercial spaces, retail, and outdoor advertising. Elevate your signage with these reliable modules for brilliant and attention-grabbing illumination. It is suitable for light box with side height of 4cm-10cm.
| Model | MH-E3 | Moq | 200 |
| Manufacturer | MengHao | Piece Weight | 0.009 |

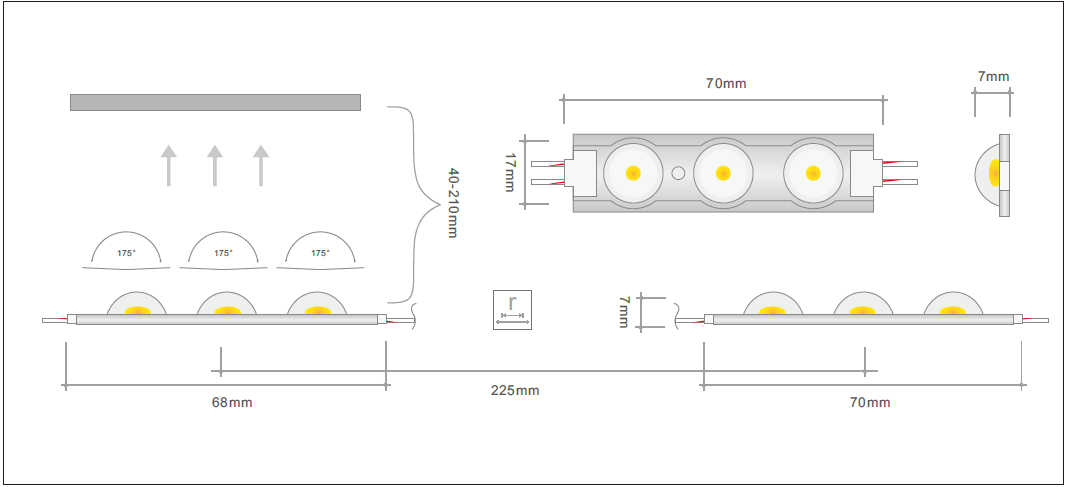

| Country Of Origin | China | Size | 70*17mm |
| Lamp Bead Type | 3030 | Center Distance | 225mm |
| Lamp Bead Amount | 3PCS | Bead Distance | 20mm |
| Level Of Protection | IP65 | Wire Length | 155mm |
| Luminance | 225lm | Linear Diameter | 0.57mm |
| Brightness Per Watt | 150lm | Each String/One | 20 |
| Voltage | 12V | Package/Piece | 200 |
| Power | 1.5W | Guarantee Period | 3 Years |
| Illuminance | 5850 | Cases/PCS | 2600 |
| Irritation Angle | 170° | Case/Weight | 24kg |
| Colour | W/CW | Carton Size | 51*36*31CM |
| Color Temperature | 2800-15000K | Lumen Depreciation | <6% |
| Wire Diameter | 0.26mm² | Life Time | 50000 |
1. Bright and Uniform Illumination:
LED sign modules for letter signs provide bright and uniform lighting, ensuring that signage is highly visible and stands out effectively.
2. Energy Efficiency:
These modules are energy-efficient, consuming less power compared to traditional lighting sources. This not only reduces energy costs but also contributes to sustainability.
3. Long Lifespan:
LED technology offers a long operational lifespan, minimizing the need for frequent replacements and maintenance, especially in outdoor sign applications.
4. Weather Resistance:
Many LED Light Modules for Signs are designed to be weather-resistant, making them suitable for outdoor signage where exposure to the elements is a factor.
5. Versatility in Design:
The modular nature of LED Light Modules allows for versatile design possibilities. They can be easily arranged to fit different sign shapes and sizes, providing flexibility in customization.
6. Easy Installation:
Designed for ease of installation, these modules often come with features like adhesive backing or mounting holes, making the installation process straightforward.
7. Color Options:
LED Light Modules for Signs are available in various color options, including single-color and RGB variants. This allows for creative and eye-catching signage displays.
8. Low Maintenance:
With a long lifespan and durable design, LED Light Modules for Signs require minimal maintenance, reducing downtime and associated costs.
9. Dimming Capabilities:
Some LED Light Modules offer dimming capabilities, allowing users to adjust the brightness of the signage based on specific lighting needs or preferences.
10. Suitability for Indoor and Outdoor Use:
These modules are suitable for both indoor and outdoor sign applications, providing consistent and reliable illumination in different environments.
1. Channel Letters: LED Light Modules are extensively used to illuminate channel letters in signage. Their compact design allows for precise lighting within each letter, creating a vibrant and attention-grabbing display.
2. Lightboxes and Backlit Signs: LED Light Modules are commonly employed in lightboxes and backlit signs. Their uniform illumination enhances the visibility of graphics and messages, making the signage more engaging.
3. Architectural Signage: Architectural signage, including building names and directional signs, often utilizes LED Light Modules for their bright and consistent lighting, contributing to clear and attractive wayfinding.
4. Retail Displays: Retailers use LED Light Modules to highlight products and enhance visual appeal in displays. The modules' versatility allows for creative lighting arrangements in retail environments.
5. Outdoor Signs: LED Light Modules designed for outdoor use are applied to outdoor signs, providing weather-resistant illumination for business signs, billboards, and other outdoor advertising displays.
6. Trade Show Booths: Exhibitors at trade shows often incorporate LED Light Modules into their booth signage, creating visually striking displays that attract attention in a crowded exhibition space.
7. Safety Signage: LED Light Modules are utilized in safety signs for enhanced visibility, especially in emergency exits, evacuation plans, and other critical safety information.
8. Hospitality Signage: Hotels, restaurants, and hospitality establishments use LED Light Modules for signage, including entrance signs, directional signs, and illuminated logos, to enhance their brand presence.
9. Customized Signage Projects: LED Light Modules are versatile and can be adapted for various customized signage projects, allowing for unique and eye-catching designs in both commercial and residential settings.
LED Light Modules for Signs are compact units containing multiple LEDs, designed to provide bright and uniform illumination for various types of signage, including channel letters and lightboxes.
Installation is typically straightforward. Most LED Light Modules come with adhesive backing or mounting holes, allowing for easy attachment to signage. Proper spacing and alignment are essential for optimal results.
Yes, many LED Light Modules for Signs are designed to be suitable for both indoor and outdoor applications. It's important to choose modules with the appropriate level of weather resistance for outdoor signage.
Yes, LED Light Modules are known for their energy efficiency. They consume less power compared to traditional lighting sources, resulting in energy cost savings over time.
Yes, LED Light Modules are available in various color options, including single-color (e.g., white, red, green) and RGB variants, allowing for creative and customizable signage displays.
Many LED Light Modules offer dimming capabilities, providing flexibility in adjusting the brightness of the signage. However, it's essential to use compatible dimming controls.
Yes, LED Light Modules are commonly used for illuminating channel letters, providing a bright and consistent light source that enhances the visibility of the letters.
LED Light Modules have a long operational lifespan, often lasting tens of thousands of hours. The exact lifespan may vary depending on factors like usage and operating conditions.
LED Light Modules typically operate on low voltage (e.g., 12V or 24V), and it's important to use the appropriate power supply to match the voltage requirements of the modules.
Many LED Light Modules are designed to be weather-resistant and can withstand exposure to outdoor elements. It's advisable to choose modules with a suitable IP rating for outdoor signage.
Yes, LED Light Modules are compatible with various sign materials, including acrylic, plastic, and metal, making them versatile for different types of signage.
